4 Axis Suitable Precision Fixtures Providing 001mm Accuracy Engineered for Precision Machining and Production Efficiency

4 Axis Suitable Precision Fixtures Providing 001mm Accuracy Engineered for Precision Machining and Production Efficiency
4 Axis Suitable Precision Fixtures Providing 001mm Accuracy Engineered for Precision Machining and Production Efficiency 4 Axis Suitable Precision Fixtures Providing 001mm Accuracy Engineered for Precision Machining and Production Efficiency

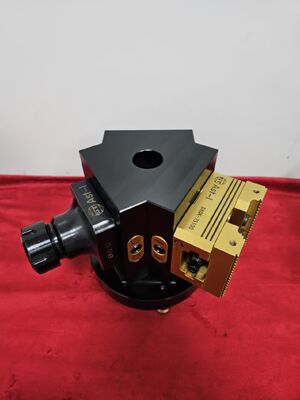

Großes Bild :  4 Axis Suitable Precision Fixtures Providing 001mm Accuracy Engineered for Precision Machining and Production Efficiency

Produktdetails:
Markenname: AST
Model Number: SK96-205
Kontakt

4 Axis Suitable Precision Fixtures Providing 001mm Accuracy Engineered for Precision Machining and Production Efficiency

Beschreibung
Suitable For: 4 Axis Repeatablity: Within 0.005mm
Oem: Supported Cycletimereduction: Up To 80%
Accuracy: 0.01mm Clamping Type: Single Clamping
Feature: Flexible Exchange Accessories: 4 Pull Studs
Hervorheben:

4 axis precision fixture

,

zero point fixture 0.01mm accuracy

,

precision machining fixture with warranty

AST SK96-205 Zero Point Fixture
Advanced 4-axis clamping solution engineered for precision machining with 0.01mm accuracy and flexible exchange capability for rapid workpiece changes.
Key Features & Benefits
  • 0.01mm precision accuracy for superior machining results
  • Up to 80% cycle time reduction through quick change mechanism
  • Flexible exchange capability for rapid fixture swapping
  • 18KN locking force for secure workholding
  • Compatible with 3-axis, 4-axis, and 5-axis clamping systems
  • Weight capacity: 5-20kg depending on model
  • Repeatability within 0.005mm for consistent positioning
Technical Specifications
Brand AST
Model SK96-205
Accuracy 0.01mm
Repeatability 0.005mm
Locking Force 18KN
Lifespan 1-5 years
Includes 4 pull studs
Applications
Ideal for CNC machining centers, aerospace component manufacturing, automotive parts production, and precision engineering workshops. Compatible with 3-axis and 4-axis vise configurations for versatile machining operations.
Customization Options
Tailor the Zero Point Fixture to your specific requirements with customization services for 3-axis vise configurations or 5-axis fixture setups. Achieve optimal performance and cycle time reduction through application-specific optimization.
Support & Maintenance
Comprehensive OEM support with detailed service instructions, troubleshooting guidance, and genuine spare parts availability. Regular maintenance ensures consistent performance and extends fixture lifespan.
Packaging & Shipping
Securely packaged in custom foam inserts within double-walled cardboard boxes. Includes all components, installation instructions, and calibration certificates. Insured shipping with tracking options available.
Frequently Asked Questions
What is the brand and model number of the Zero Point Fixture?
Manufactured by AST with model number SK96-205.
How does the Zero Point Fixture improve machining operations?
Enables fast, repeatable workpiece changes, reducing setup time and enhancing precision for increased productivity.
Is the AST SK96-205 compatible with different machine types?
Yes, designed for compatibility with various CNC machines, including 3-axis, 4-axis, and 5-axis configurations.
What materials is the fixture constructed from?
Built from high-quality, durable materials ensuring long-lasting performance and stability during machining operations.
